Controller FIBARO Walli Controller White, Z-Wave, FGWCEU-201-1

Descriere

Informații despre produs "FIBARO Walli Controller"

Detailed information can be found on the manufacturer's website. All product manuals are available at https://manuals.fibaro.com/

Warning: For indoor usage only!

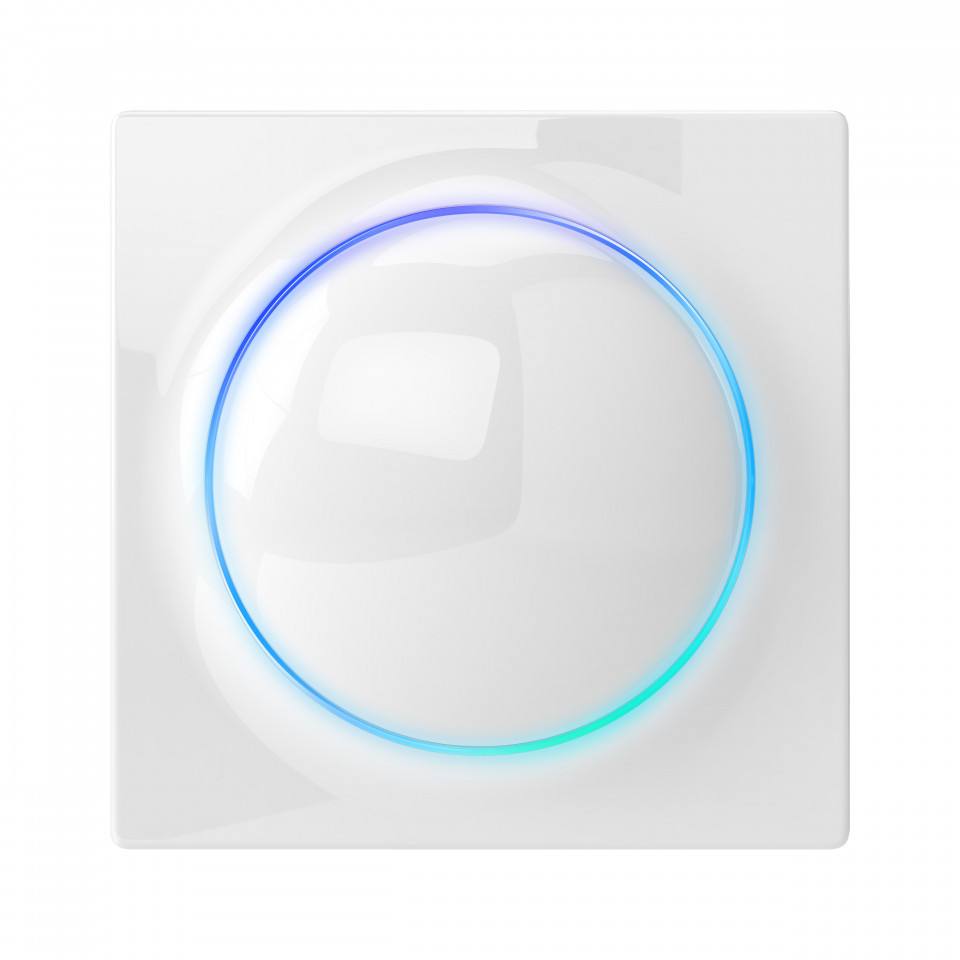

FIBARO Wall Controller is a wall switch to control associated devices and run scenes wirelessly via Z-Wave network.

You can install it with FIBARO cover plate or other compatible: GIRA System 55 (Standard 55, E2, Event, Event Clear), Legrand Céliane or Schneider Odace (required parts and limitations were described in the full manual).

• Universal surface-mounted button for starting scenes
• A device that can be assigned any role, e.g., a light switch ora button for roller blinds
• A device that is compatible with Walli product line, but also perfect as a separate button

Basic advantage of FIBARO Walli

• Can be installed anywhere using: double-sided tape (included), screws on any surface or flush-mounted box
• Power supply: Battery operated, DC powered (power connector included)
• Possibility of connection with any devices in the FIBARO system
• Possibility to duplicate existing buttons, e.g., for light
• Can be used with mulitple frames of the Walli series

FIBARO Walli Controller – extend the frame!

• Where there lack of switch, extend any Walli switch or outlet with Walli Controller
• Simple assembly without installation only frame and lightguide replacement

FIBARO Walli Controller areas of strong advantages

• The only device that can be both DC powered and battery operated
• The only device with well-identifying color signaling
• The only device that, apart from the scene controller, can duplicate other devices (roller shutter, switch, etc.)
• In the context of FIBARO: It completes the Walli line with a long-awaited device
• An alternative to The Button and keyfob, Swipe

FIBARO Walli Controller usecases

• Click the scene: "good morning" and "good night"
• Click on a scene: profile activation: "Away" and "Home"
• Connect directly with other devices (switch, roller shutter, dimmer, wallplug, etc.) in the available operating modes
• Duplicate of existing buttons - adding a "forgotten" button or simply the missing one - in many situations creating a 2-way connection without changes in wiring
• Installation in a Walli multi-frame next to a standard Walli button or outlet
• Communicate to the user via ring colour changes in the DC mode (flooding, alarm, door bell)
• Install on the existing flush-mounted box
• Install anywhere and on any surface

FIBARO Walli Controller main purchasing pros

• Installer: Complementary device allowing installation withoutdrilling and preparing an additional electrical point (nextto the existing one and supplying it from the same flushmountedbox)
• End-user: Interesting design, ease of assembly and use, Good price vs competitition

Technical details:

• Power supply Battery and/or power supply unit
• Battery type ER14250 ½AA 3.6V (included)
• Supply unit type 5–24V DC, LPS or NEC class 2 (not included)
• Battery life est. 2 years (with default settings and max. 10 pushes per day)
• Operating temperature 0–40°C
• Ambient humidity 0–90% RH without condensation
• Radio protocol Z-Wave (700 series chip)
• Radio frequency band 868.0–868.6MHz; 869.7–870.0MHz
• Max. transmitting power+13dBm
• Range up to 50m outdoors up to 40m indoors(depending on terrain and buildingstructure)
• Dimensions HxWxD 86 x 86 x 20 mm

Cod produs: FGWCEU-201-1

.
