FIBARO NICE BIDI-ZWAVE (IBT4ZWAVE)

Descriere

What is NICE BIDI-ZWAVE?

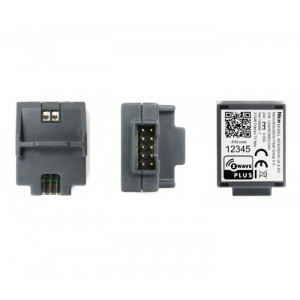

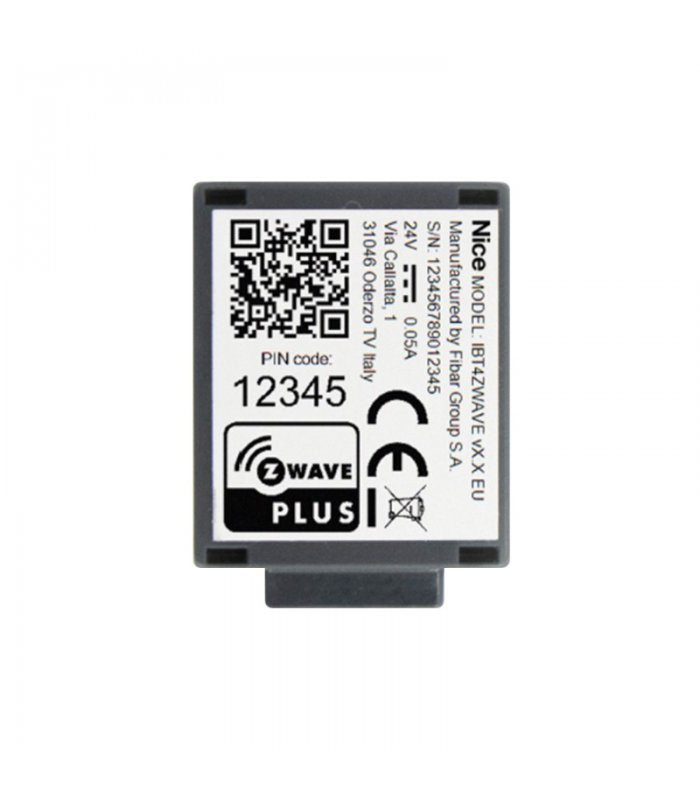

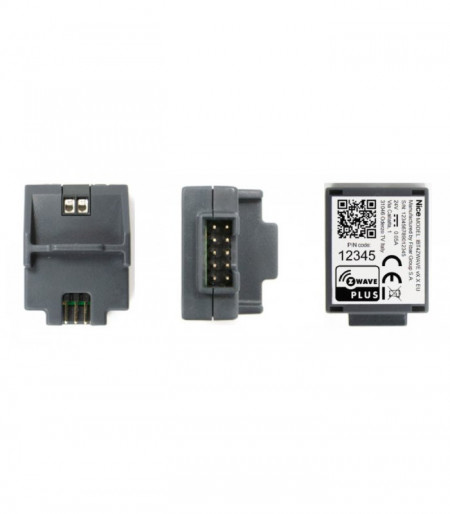

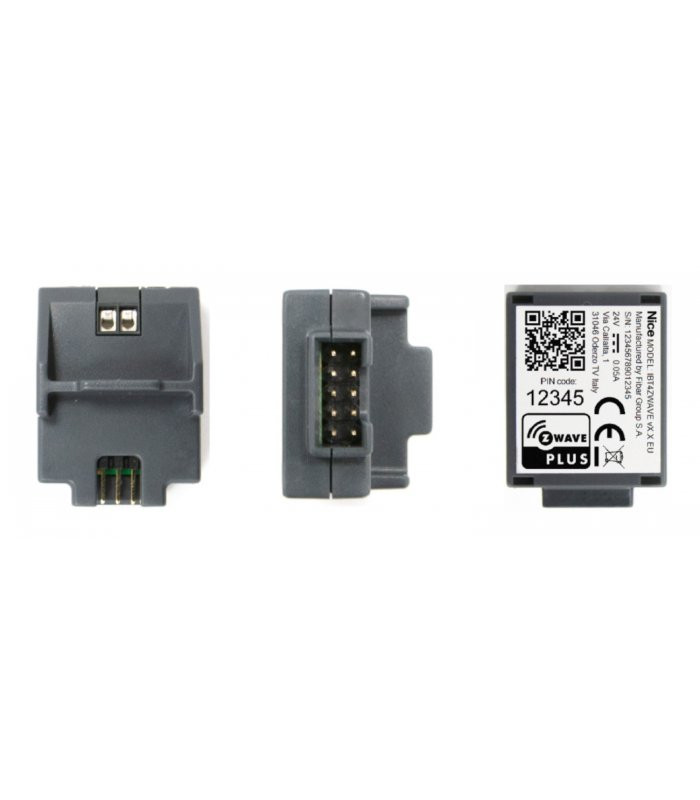

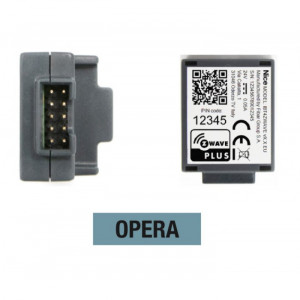

Nice BiDi-ZWave is a special dongle designated for plug & play integration between Nice control units and the FIBARO smart home system.

The BiDi-ZWave accessory is a device that – by means of Z-Wave communication – allows for controlling the movement and status of Gate&Door-type Nice automations compatible with the BUS T4 (Opera) protocol.

Before proceeding with the product’s installation, make sure to have the following:

• 1 Nice automation control unit of the Gate&Door catalogue equipped with BUS T4 connection
• 1 Z-Wave gateway

Important! If the BUS T4 connection is used for the IBT4N interface, the BiDi-ZWave cannot be connected to the control unit.

Technical specifications:

• Newest Z-Wave chip generation (ZW7) – improved performance and security
• Plug & play installation
• Intelligent algorithm automatically recognizes protocol on proprietary BUS
• Additional possibilities including not only opening and closing the gate/door but also status reporting and gathering diagnostic information
• No need for replacing the old radio module and getting rid of classical Nice remote controls – they can work in paralel with BiDi-ZWave flawlessly

The backward compatibility of the BiDi - Z-Wave interface with all FIBARO gateways, and the possibility of being installed on a very high number of Gate&Door line automations, allow its use in already realized systems.

Product Highlights

• Interface designed for easy installation in Nice control units. It allows their easy integration with the FIBARO system.
• Compatible with Z-Wave and Z-Wave + controllers
• Supports protected mode (Z-Wave network security mode) with AES-128 encryption
• Uses the latest generation Z-Wave chip (ZW7)
• Collects and provides diagnostic information
• Works with various NICE drives offered over the past 10 years

Works with NICE

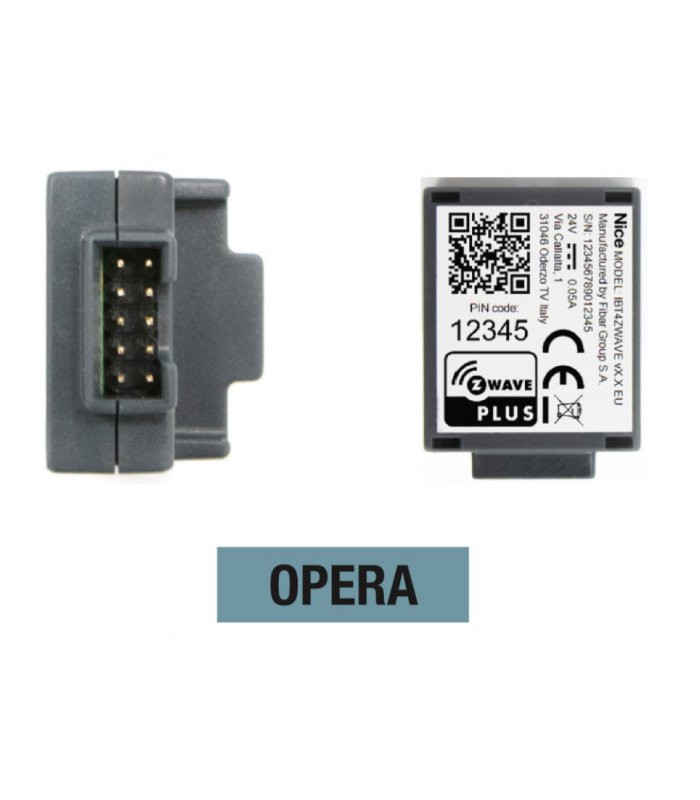

• Opera R10 compatible - The BiDi-ZWave interface is works with all automations in the Gate & Door catalogue having Opera.
• The most popular solutions - The range of control units having Opera and the connector for IBT4 interfaces is very wide including the most popular models sold over the last years.

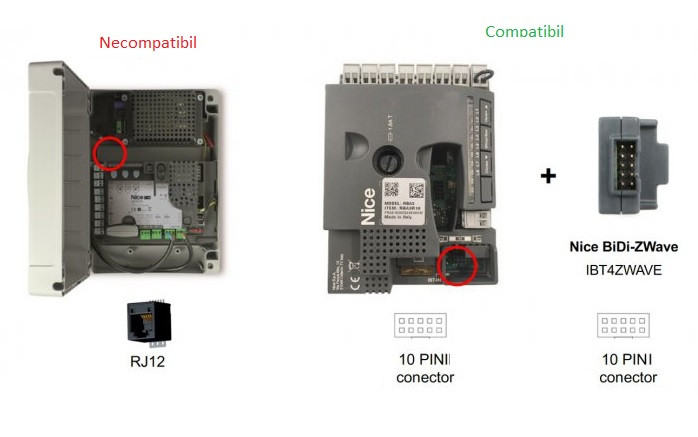

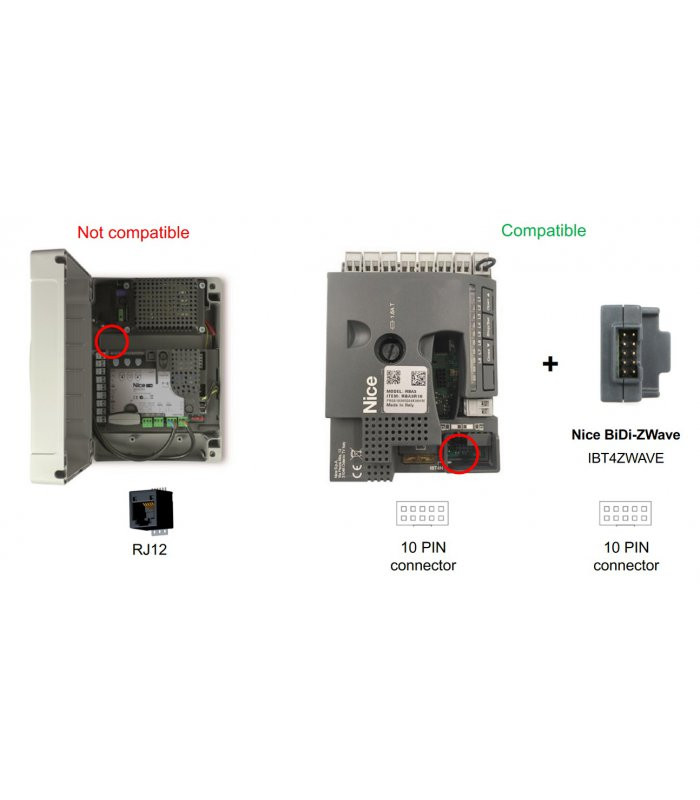

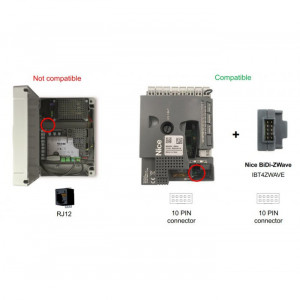

• Minor exceptions - For control units prior to the R10 version, and thus without Opera or with Opera but with RJ12 connector, they are not compatible.

Technical Data

• Power Source: 24V DC (supplied by the NICE control unit)
• Absorbed current max: 50mA
• Operating temperature: -20°C ÷ +50°C
• Radio protocol: Z-Wave(700 serieschip)
• Radio frequency: 868.0 -868.6; 869.7 -870.0 MHz
• Internal antenna max. transmit power: 10dBm
• Outside dimmensions(L x W x H): 37mm x 28mm x 21mm
• Protection rating (IP): 40

SKU: IBT4ZWAVE

.
