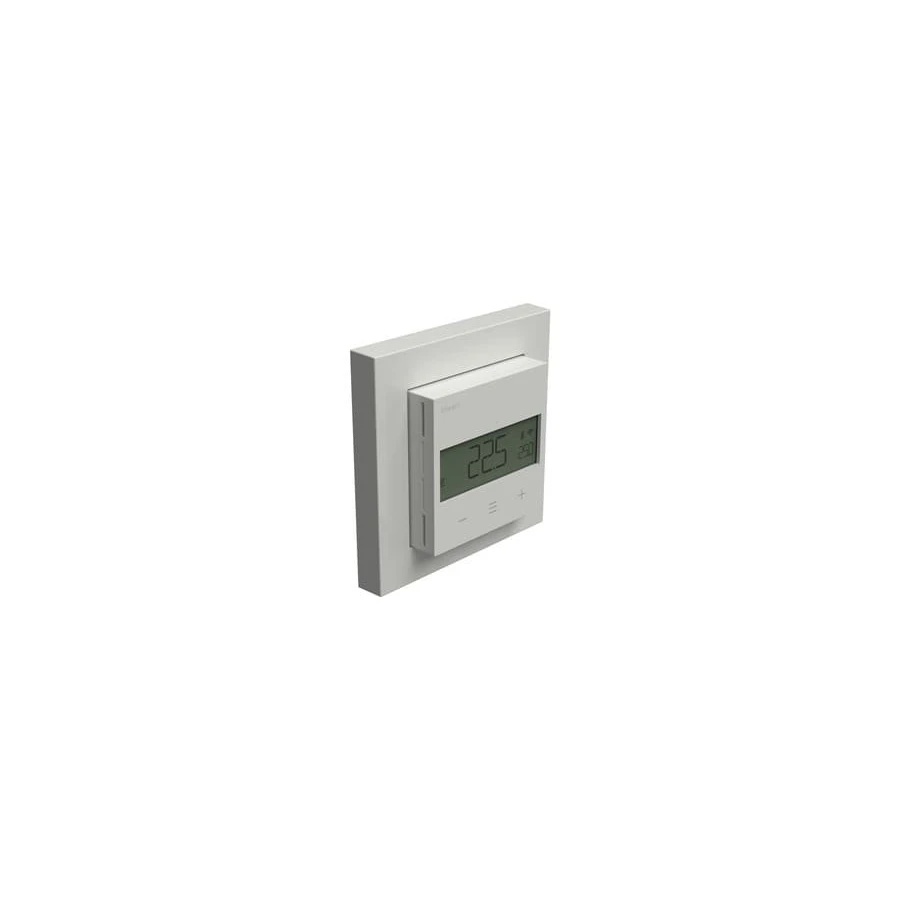

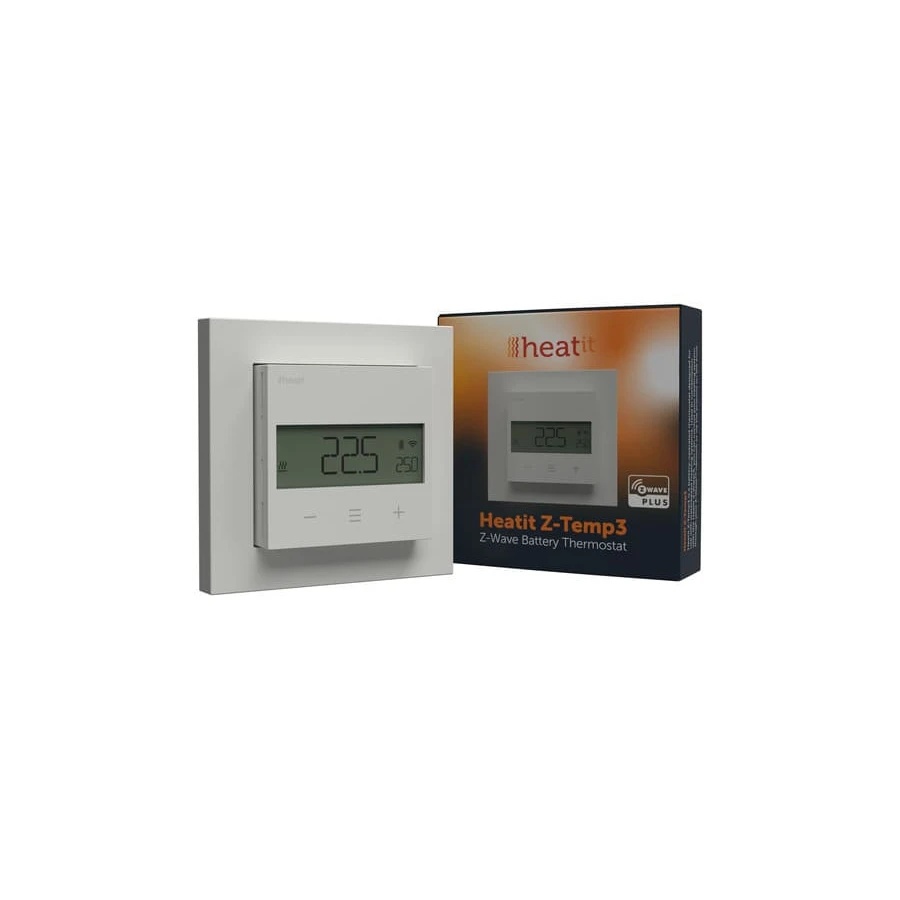

Termostat HEATIT Z-Temp3 - White

Descriere

Heatit Z-Temp3 is a battery-operated thermostat designed for controlling waterbased heating systems. Used in combination with the Heatit Z-Water2, you can control your heating system through the Z-Wave® network or via the buttons on the front panel. The thermostat has a user-friendly interface.

• Heatit Z-Temp3 has 3 modes: Heat, Cool, and Eco.

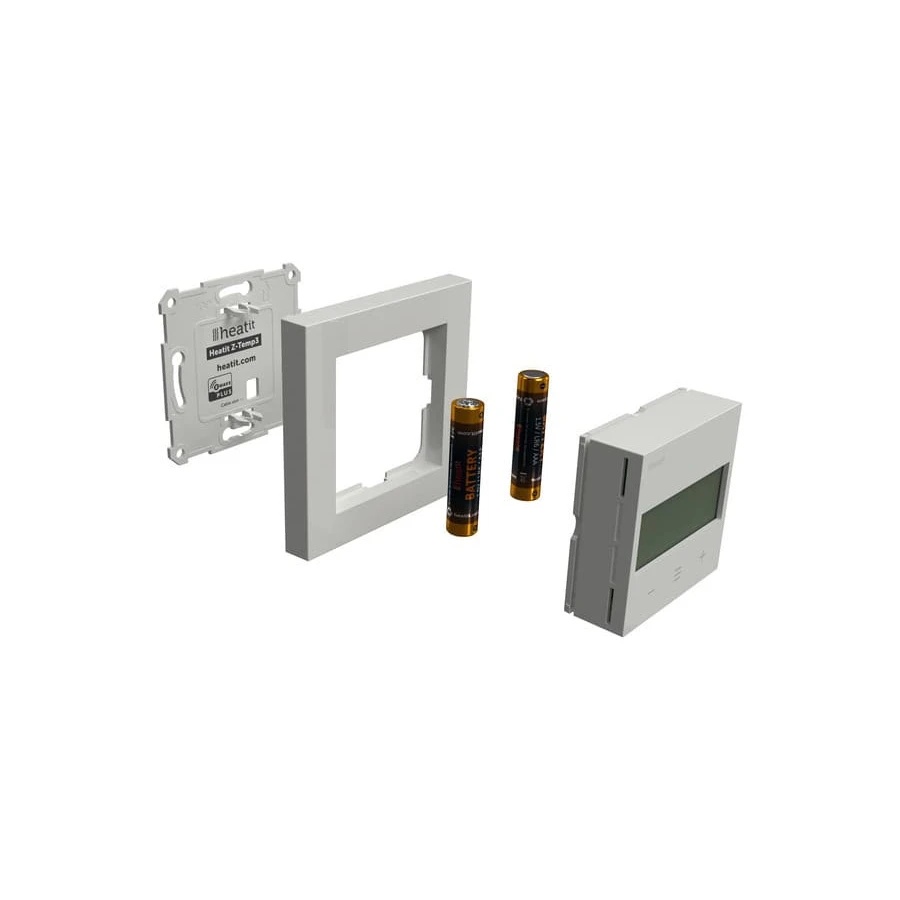

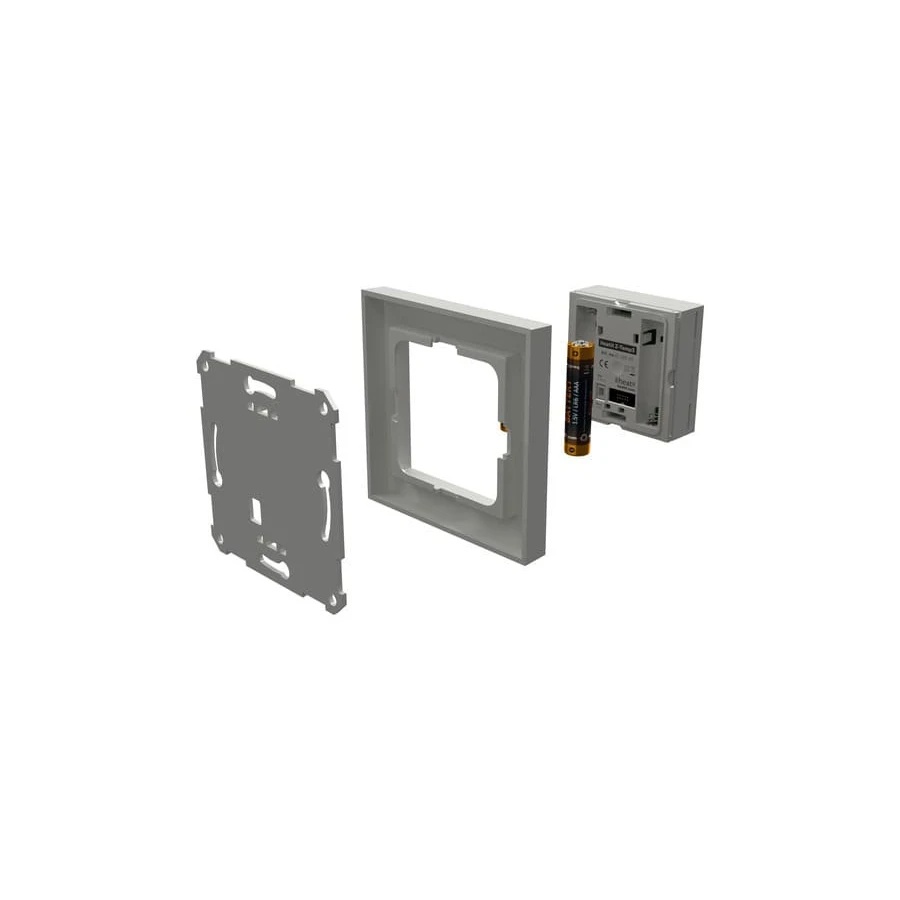

• The thermostat fits into System 55 frames, and may be mounted alongside other equipment such as e.g dimmers or light switches.
• Heatit Z-Temp3 can also be mounted directly on the wall or placed freely, e.g. on a shelf.
• Heatit Z-Temp3 can be set as a master thermostat. This means that you can set the setpoint and mode on one unit, and it will automatically send the setpoint and mode to other connected units.
• All communication between Heatit Z-Temp3 and the controlled device is 100% wireless.
• Heatit Z-Temp3 uses 2x AAA batteries (typically provides a battery life of more than 1 year), but you can also connect the device to an external power source. The Heatit Transformer 230VAC (45 126 48) is recommended for this purpose.
• Heatit Z-Temp3 can be associated with Heatit ZM Single Relay, other Z-Wave relays, Heatit ZM Thermostat, Heatit Z-TRM6 Thermostat and other Z-Wave devices to control other types of heating solutions.
• Associations - The thermostat allows you to set associations, making it a master thermostat. In total, it can control 10 thermostats and 10 external relays.
• Heatit Z-Temp3 is a great choice for the restoration or renovation of existing buildings, as it is easy to install without the need for wiring. We recommend using multiple 230VAC devices to create a mesh network.
• Hysteresis - With hysteresis control enabled, the thermostat will regulate based solely on temperature. The thermostat engages and disengages based on the hysteresis value in relation to the setpoint.
• PWM/Pulse with Modulation - With PWM/pulse with modulation control enabled, the thermostat regulates based on cycles. The thermostat engages and disengages in percentage intervals of the cycle.
• Open Window Detection - With open window detection, the thermostat senses if a window is open, cutting off heating in the event of a rapid temperature drop.
• Push Button - With a push button that provides clear feedback during use.

Highlights:

• Z-Wave 800 series

• Battery-operated thermostat for controlling relays and thermostats

• Internal temperature sensor

• Humidity sensor

• Master thermostat

• Hysteresis - PWM

• 3 modes: Heat - Cool - Eco

• Open Window Detection

• 10 associations per group

• LCD display with backlight

• Lock mode/child lock

• Firmware update (OTA)

• SmartStart

• Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class

Specifications:

• Z-Wave Frequency Z-Wave - 868.4 MHz (EU)

• Z-Wave Chip Z-Wave 800 chip

• Min radio frequency range 40m

• Over The Air update (OTA) Ja

• Push buttons 3

• Range IR signal (meters) 40m

• Temperature measurement range 5 til 40°C

• Z-Wave encryption mode S2 Unauthenticated Class S0, S2 Authenticated Class

• FLiRS Yes

• Primary IoT Protocol Z-Wave

• Voltage 3.3 VDC

• Battery type AAA 1.5V

• Number of batteries required 2

• Battery current 1.5V
